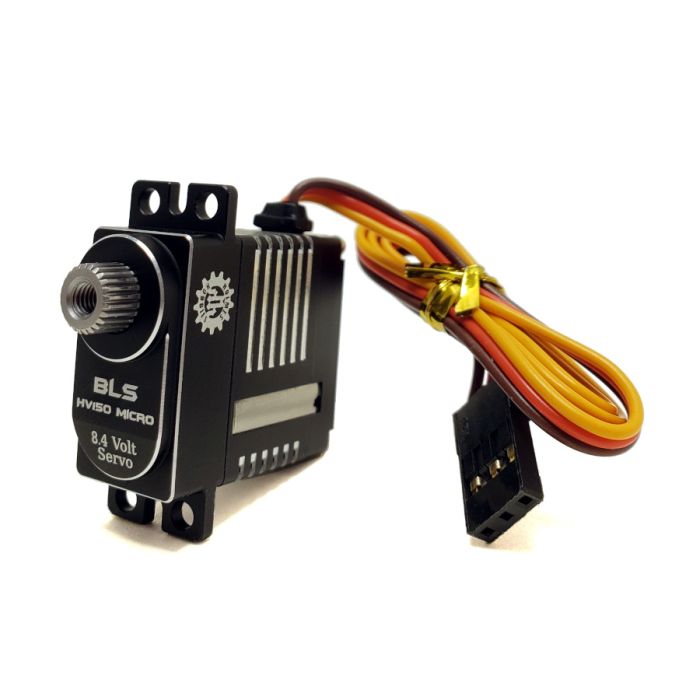

BLS HV150 8.4v Mini Rock Crawler Servo

BLS HV150 Rock Crawler Servo

The brushless BLS HV150 servo is designed for mini and micro scale R/C Rock Crawlers and shifting duty, but at home in any vehicle that needs extreme durability, high torque, and ultra fast speeds! It can be powered from 5v to 8.4v, BEC with 5 amp rating or higher recommended. Enjoy massive performance and efficiency from the high quality brushless motor and circuitry.  Depending on vehicle, you may need an aftermarket servo horn or servo mount.

FEATURES:

• Includes aluminum servo horn. Holes tapped 1.6mm - .020 thread pitch.
• Water resistant Alloy Case
• Waterproofed internals
• All steel machined gears
• High performance Brushless motor
• 18cm radio signal lead
• 2s  LiPo battery compatible, 5 volt to 8.4 volt range
• 1 Year Warranty

SPECIFICATIONS:

• Weight:24g
• Dimensions: 23x12x27.5mm
• Spline: 25 tooth standard size
• Torque @ 6v 106 oz/in (7.6kg/cm)
• Speed @ 6v 0.08 sec
• Torque @ 8.4v 174 oz/in (12.5kg/cm)
• Speed @ 8.4v 0.06 sec
