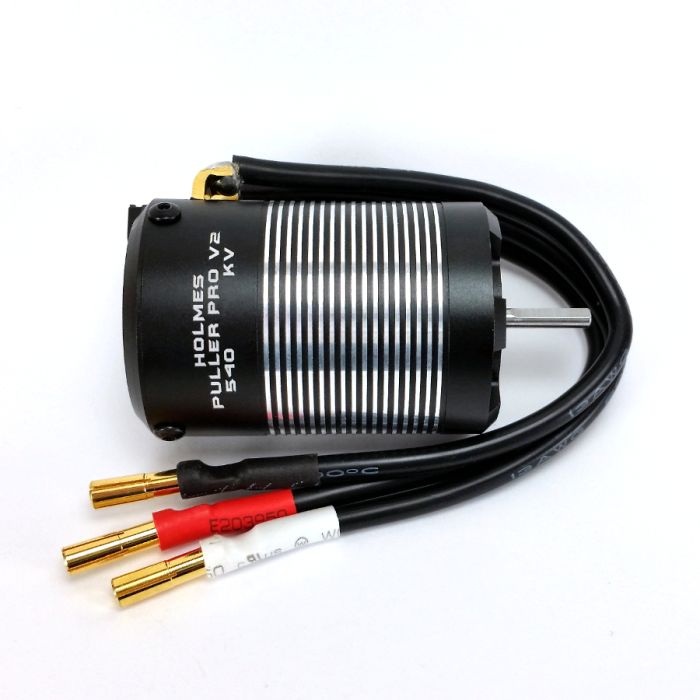

Puller Pro V2 Rock Crawler Motor - Standard - 3500kv

Be the first to review this product

$54.99

SKU

120100057

Details

High Power, High Torque, High Performance, Smooth Startup!

When you want BIG torque and smooth brushless startup on the rocks, the Puller Pro v2 delivers! Perfectly suited as a drop in motor for any rock crawler or rock racer that uses 540 and 550 motors, the Puller Pro v2 is a class above other brands! It crams in more "active motor" than any other 540 available to give you the excessive force you desire. Exceptional performance in rock racing, extremely strong brake, with top class smoothness going slow in the rocks. Designed for extra control in fast, large, heavy, and two speed rock crawlers.

Improvements from v1 include better drag brake, adjustable and more accurate sensors, better performance in reverse rotation rigs, beefier solder tabs for lower resistance, and a sideways oriented sensor port for tight installs.

To prevent motor damage, be sure that screws are not inserted more than 3.5mm into the mounting holes.

Features:

Four pole 18mm diameter x 25mm length rotor
Twelve slot stator
13g phase wires with 4mm bullets installed
Oversized bearings
Sensored with adjustable timing
Waterproof sensor board
Includes sensor wire

Specs:

Standard 540 size motor
25mm mounting pattern
M3 mounting screws
3.175mm shaft
36mm diameter
53mm length
210g (7.4oz) with wires
50,000 rpm max

1 year warranty from date of purchase. Does not include damage from overheating, rusting, or improper installation.
